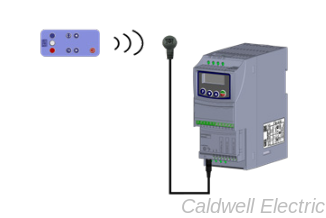

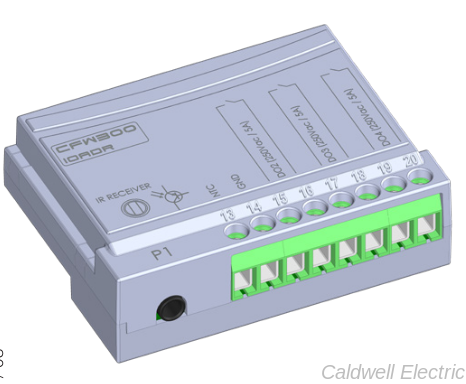

The Weg CFW300-IOADR module provides a wireless infrared remote control for the CFW300 VFD. The kit
includes the IOADR module, the infrared remote control, and a 2-meter cable between the module and IR sensor.

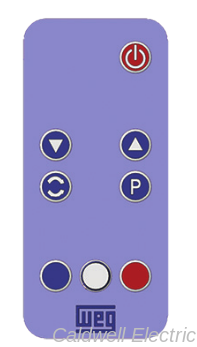

The Infrared Remote contains a total of 6 function keys. A remote with display is also available as model CFW300-IOADR-D.
The function of the keys are listed below:
IOADR Remote Control Functions
Key
Description
Power
Start/Stop motor
Down
Browse display up
Up
Browse display down
Cycle
Change view between P842 and P843
P
Confirm/Program parameter on CFDW300 display
Blue
Programmable Function 1
White
Programmable Function 2
Red
Programmable Function 3
The IOADR module also contains 3 NO (Normally Open) Relay contacts good for up to 5 Amps.
