Description

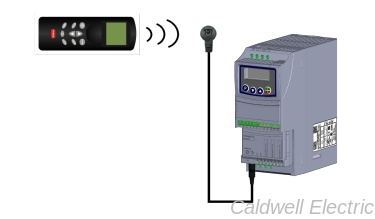

The Weg CFW300-IOADR-D module provides a wireless infrared remote control and display for the CFW300 VFD. The kit
includes the IOADR-D module, the infrared remote control with display, and a 2-meter cable between the module and IR sensor.
Maximum distancebetween the sensor and the remote is 8 meters.

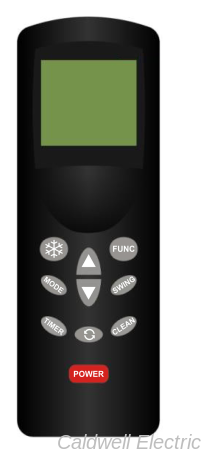

The Infrared Remote and display contains a total of 10 keys.
The function of the keys are listed below:
IOADR Remote Control with Display Functions
| Key | Description |
| * | Send a command to enable/disable the COOL and UVC funtions |
| Func | Send command to enable/disable special function. |
| Mode | Send command to change operating mode between AUTO and MAN |
| Swing | Send command to enable/disable the SWING function |
| Timer | Send command to enable timers 01 - 02 -03 |
| Clean | Send command to enable/disable the CLEAN function |
| (cycle) | Send command to enable/disable the DRY function |
| Up | Increments and sends percentage/temperature values |
| Down | Decrements and sends percentage/temperature values |
| Power | Sends ON/OFF commands. Press and Hold 5 seconds toggles temp. units from °F to °C. |

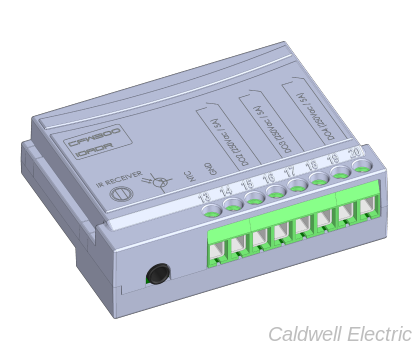

The IOADR module also contains 3 NO (Normally Open) Relay contacts good for up to 5 Amps.
