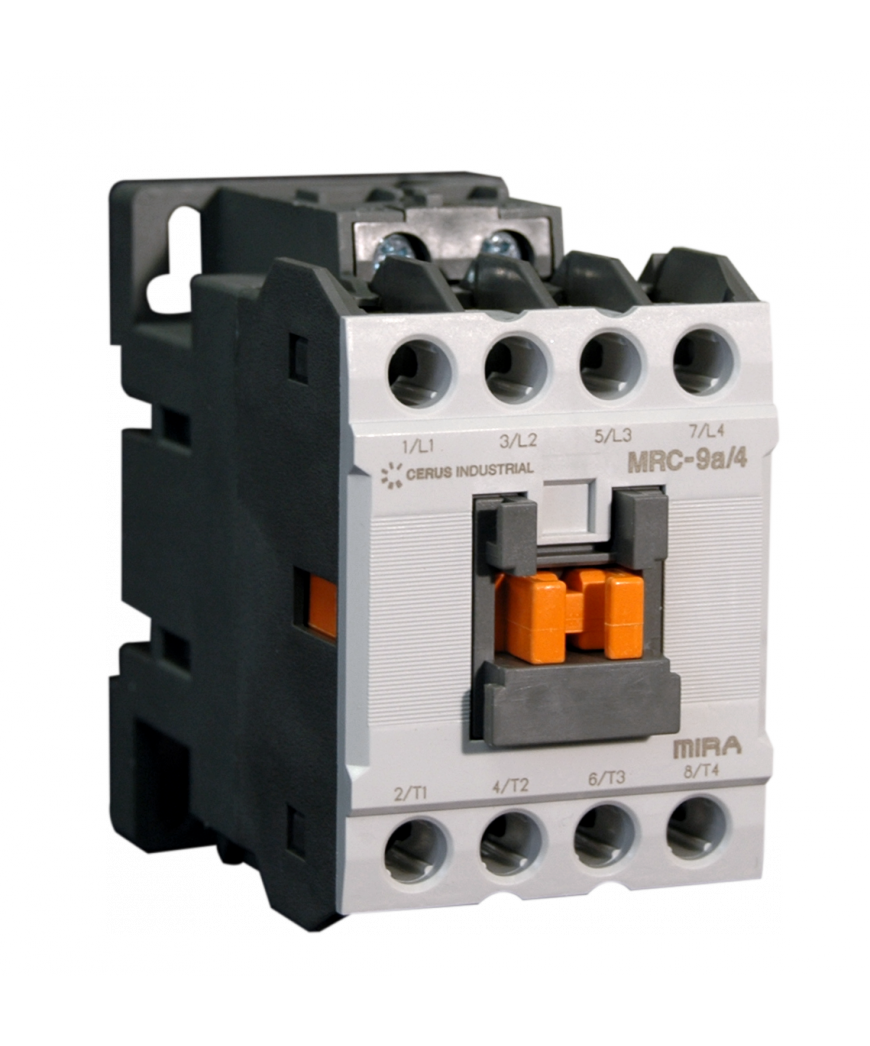

Cerus MRC-9B-480VAC IEC 3-pole Size 00 Contactor 9 Amp 480VAC Coil

Cerus MRC-9B-480VAC IEC 3-pole Size 00 Contactor 9 Amp 480VAC Coil

  • $28.04


The Cerus line of IEC contactors provide a reliable cost-effective way of starting and stopping higher current loads, such as electric motors and large lighting systems.  The IEC design allows for an easy snap on/off mounting to an existing DIN rail.  Available in a wide variety of amp ratings and control voltage coil ratings.   These 3-pole contactors also feature included N.O. and N.C. auxiliary contacts.  Optional current protection thermal overload relays are also available.

Download the Franklin Electric Industrial Components Catalog

Specs

 Contact Rating 9 Amps
Rated Insulation Voltage 1000 V
NEMA Size 00
HP Ratings (single-phase)  1/2 HP (120VAC),  1.5 HP (240 VAC)
HP Ratings (3-phase)  2 HP (208VAC), 3 HP (240 VAC), 5 HP (480VAC)
Coil Voltage 480 VAC
Dimensions (inches) 1.77 W x 2.89 H x 3.17 D
Standards IEC/EN 60947-1,IEC/EN 60947-4-1,UL 508, K60947
Certifications UL, CSA, CE, ABS



Overload Relays

Cerus MTK-32 Overload Relay  Overload relays will help protect your motor or other load from damage if the motor or other device gets overloaded, or a phase is lost.  This device, pictured below, attaches below the contactor and will disengage the contacts should an over-current be detected.  Current range is settable from the front dial. See our complete line of Cerus IEC Overload Relays.
